Engineering Precision Guide

Understanding 3D Printing Accuracy for Industrial Applications

In industrial manufacturing, dimensional accuracy is a critical factor when transitioning from CAD models to functional end-use parts. Explore how industrial additive processes—FDM, SLA, SLS, and MJF—interact with geometry, material dynamics, and post-processing to achieve specified fits.

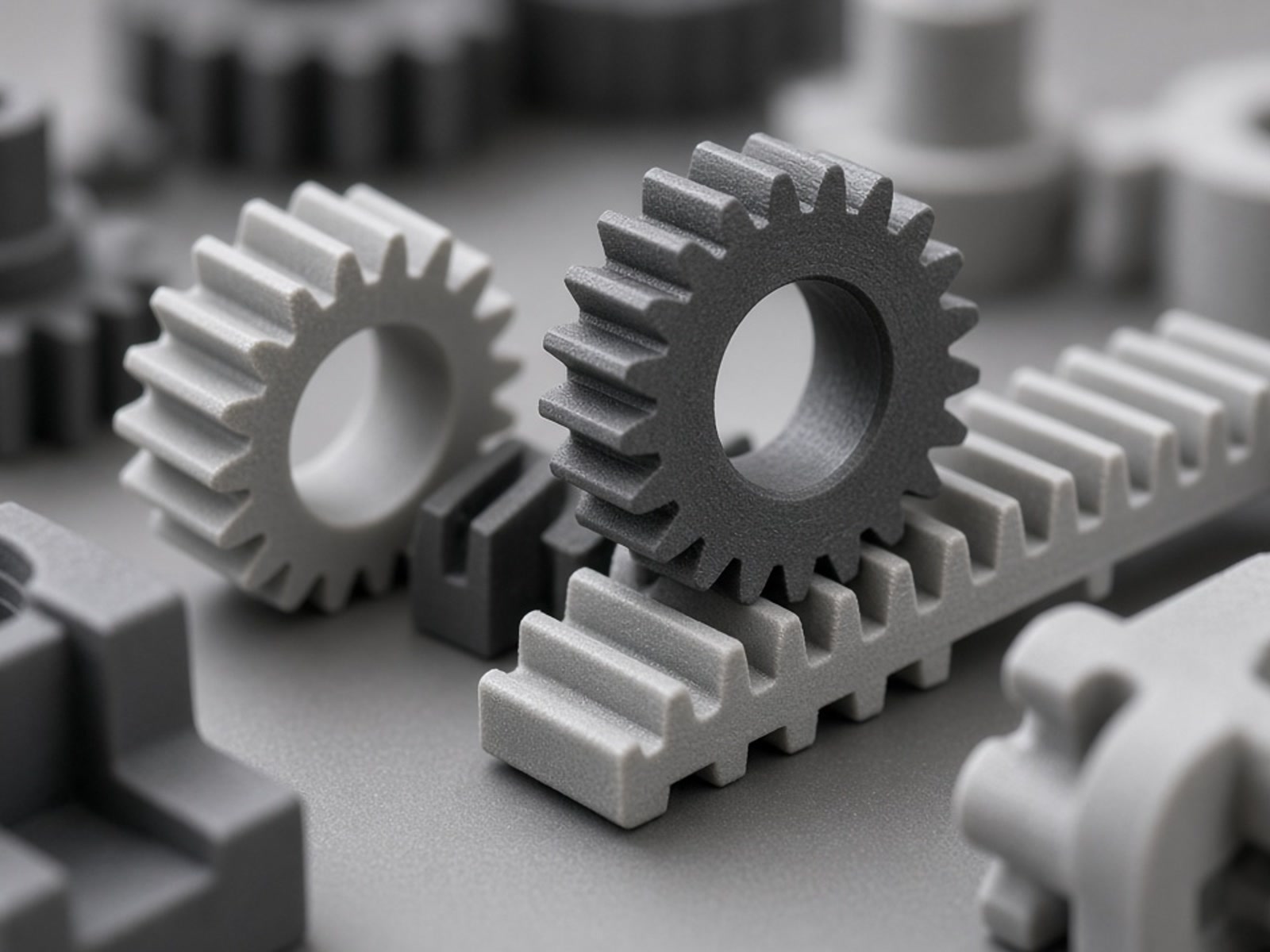

Industrial 3D Printing Accuracy and Verification
VERIFICATION STATUS: ACCURACY CALIBRATED ISO FIT READY

Defining Accuracy and Precision in Additive Manufacturing

Accuracy in 3D printing refers to how closely a printed part’s physical dimensions match the initial CAD model. Thermal or chemical transitions during filament melting or liquid resin curing result in shrinkage and thermal expansion. Process selection directly determines achievable baseline tolerances.

Process / Tech 01

SLA

Stereolithography

Typical Tolerance
±0.1 mm or ±0.2%

Best suited for high-detail prototypes, fine geometric definition, and fit-and-appearance verification.

Target: High-detail validation
Process / Tech 02

FDM / FFF

Fused Deposition Modeling

Typical Tolerance
±0.2 mm or ±0.3%

Ideal for large structural frames, assembly fixtures, manufacturing jigs, and functional equipment parts.

Target: Large structures & fixtures
Process / Tech 03

MJF

Multi Jet Fusion

Typical Tolerance
±0.2 mm or ±0.3%

Optimized for functional nylon components, low-volume end-use production, and uniform isotropic strength.

Target: Functional low-volume runs
Process / Tech 04

SLS

Selective Laser Sintering

Typical Tolerance
±0.3 mm or ±0.3%

Preferred for complex, durable nylon geometries that require self-supporting powder beds during synthesis.

Target: Durable, complex housings

Practical Selection Factors for Industrial Parts

Nominal process capability is only one component of final part precision. Dimensional accuracy must be evaluated alongside operating environment and mechanical constraints.

01

Part Geometry & Aspect Ratios

Thin walls, expansive flat cross-sections, and unsupported overhangs can lead to thermal stress accumulation and warping. Component orientation and deliberate support structure placement are essential to retain stability and design tolerances.

02

Material Expansion & Operating Demands

Engineering polymers such as PEEK, PA-CF, and specialized photopolymers feature distinct coefficients of thermal expansion. Selection must account for functional operating temperatures, mechanical loads, and chemical contact, balancing resilience against baseline tolerance limits.

03

Build Orientation & Layer Deposition

Anisotropic characteristics in layer-by-layer manufacturing dictate that tolerances differ between the XY plane and the Z build axis. Strategic positioning prioritizes critical mating surfaces and circular hole geometries along optimal toolpaths.

04

Secondary Post-Processing Integration

When precision interfaces exceed standard additive thresholds, secondary operations bridge the gap. CNC post-machining, precision reaming, thread tapping, and ultrasonic threaded insert installations ensure high-tolerance mating features.

Quality Engineering

Engineering Review and Quality Documentation

Not every feature on a part requires the same degree of accuracy. Through proactive engineering review of CAD files (STEP/STP) and 2D engineering drawings, critical-to-function tolerances are validated against material behavior and manufacturing envelopes before production begins.

For mission-critical applications and quality-controlled assemblies, standard validation documentation is available to confirm dimensional stability and material traceability.

Available Quality Documentation

  • First Article Inspection (FAI) Comprehensive dimensional verification on initial production units prior to full run.
  • Dimensional Inspection Reports Measured data points compared directly against 2D print GD&T callouts.
  • Material Certificates of Conformity Documentation verifying raw material properties, lot integrity, and technical datasheets.
  • Shipment Reports Standardized batch release checklists verifying packaging, counts, and visual standards.

Get Started with an Engineering Review

Ensure your parts meet target operational specifications. Defining operating conditions, mating dimensions, and assembly interfaces allows our team to recommend the optimal process, orient your parts effectively, and advise on design adjustments.

Recommended CAD & Drawing Inputs
  • • 3D CAD files in STEP (.step / .stp) format
  • • 2D drawings (PDF) detailing critical tolerances and fits
  • • Operating environments, mechanical loads, and thermal parameters
  • • Application intent: EOAT, functional prototype, or end-use assembly

Submit Part Specifications

Upload models and specify dimensional tolerances for an engineering assessment.
